Automatic Sachet Mini Tiny Bags Pouch Sorting Counting Feeding Machine for Medicines
Product Description and Features
This automatic sachet sorting and feeding machine efficiently handles irregularly piled materials through a sophisticated system of photoelectric sensing, servo drives, and motion controllers.
- Materials are poured into the storage silo and transported via photoelectric sensing to the lifting and lateral separation units
- The material handling roller system (11 sets of power units) performs sorting, rejection, and distance pulling operations
- Excess materials are recycled back to storage while sorted materials are sent to bagging machines in orderly sequence
- Optional visual inspection and turning machine available for material direction unification
- Compatible with cartoning machines, packaging machines, bagging machines, can filling machines, and counting/finishing machines
Technical Specifications
| Parameter |
Specification |
Notes |
| Maximum Handling Speed |
300 PP/Min |
Dependent on material sizes |
| Bag Dimensions |
Length ≤ 160mm, Width ≤ 100mm |
|
| Total Power |
8.2 KW |
|
| Power Type |
AC220V 50/60HZ or custom |
|
| Dimensions (L×W×H) |
2500 × 980 × 1600 mm |
|
| Machine Weight |
650 Kg |
|
Qiaoshou Automatic Sachet Mini Tiny Bags Pouch Sorting Counting Feeding Machine diagram
Application Areas
Foods, Medicines, Healthcare, Semiconductors, New Energy, Daily Necessities
Medicine Industry Applications

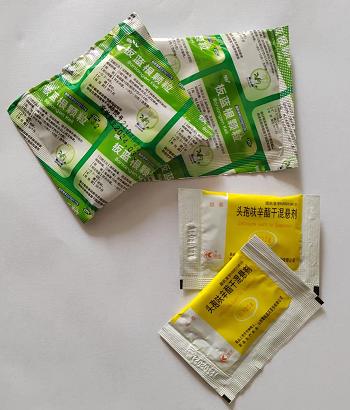

Pouch-packed instant granules/powders
COVID-19 Antigen Rapid Test
Platelike medical products
Food Industry Applications
Meal replacement powder, nutrition powder, solid drinks and other strip-shaped and square-shaped bag products
Pre-packaged seasoning products
Additional Service Options
- Complete packaging automation solutions available
Patents & Certifications
Automatic carton erector
Sorting robot
Flexible gripper
Automatic forklift machine
Automatic package feeding device
Buffer feeding mechanism for noodle fork sorting
CE Certification
Why Choose Us
- More than 15 years of industry experience
- Specialized technical team
- Free solutions and on-site visits
- Standard German industrial plants for reliable performance
After-Sales Service
- Overseas Technical Support
- Long-term Spare Parts Supply
- 12 Months Warranty
- On-site Installation & Training (Optional)
- Supports return policy
Frequently Asked Questions
Q1: How fast do your flexible parts unscrambler machines run?
It runs at 300 PP/Min
Q2: How strong is your company?
We have our own patents and R&D team. We provide comprehensive pre-sales, in-site sales, and after-sales service. With more than 70 employees and 15 years of industry experience, our founder and design director (graduate of The Open University of China in Mechanical Engineering) ensure quality. We hold CE certification and serve notable clients including Nissin, Adolf, Daliyuan Food Group, and Foshan Haitian Flavouring and Food Co., Ltd.
Q3: Are your products complete?
Certainly! We can provide complete automatic total packaging solutions.
Q4: How much is each automatic sachet mini tiny bags pouch sorting counting feeding machine?
We provide one-on-one quotations. After understanding your detailed requirements, we will create a customized solution including pricing.
